Extracellular Vesicle lsolation kit (from media)

XENO-EVIMEDI Kit
Extracellular Vesicle lsolation kit (from media)

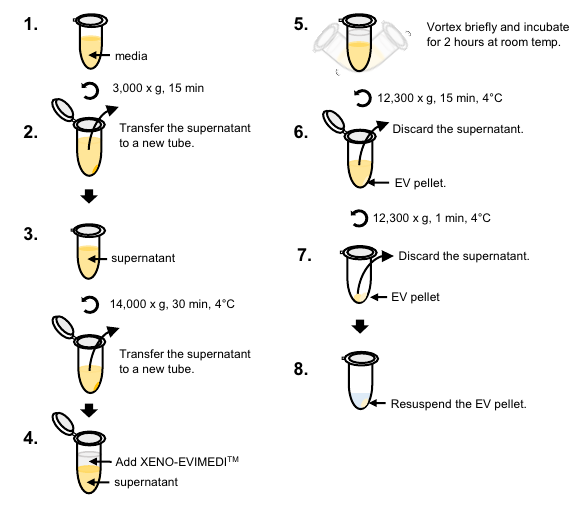

Figure 1. Short protocol of XENO-EVIMEDI
The whole process of XENO-EVIMEDI TM consists of 7 steps that takes around 3 hrs. Without a cumbersome ultracentrifugation step, the XENO-EVIMEDI TM method provides efficient, simple, and rapid outcomes to meet customers demands.

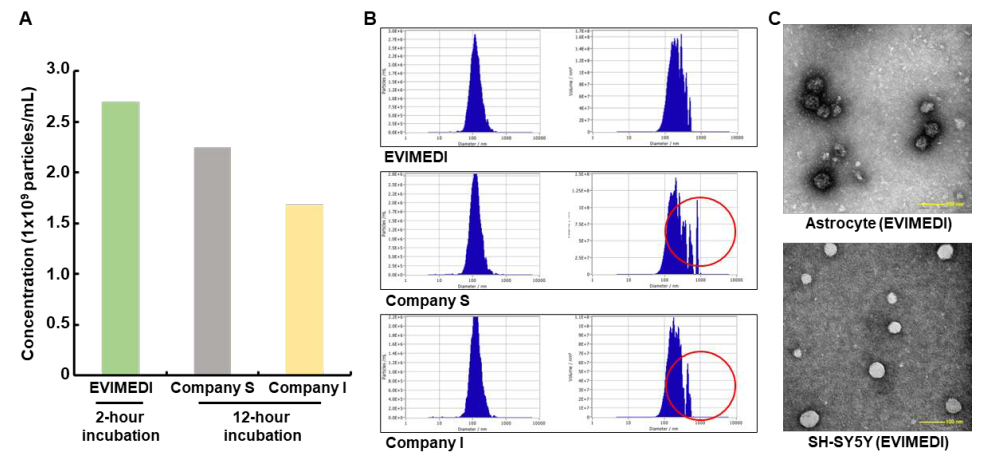

Figure 2. Analysis of exosome purity and yields
A and B. Exosomes were isolated from 1 ml of culture media using XENO-EVIDEMI TM and kits from company S and company I.
Nanoparticle tracking analysis (NTA) was performed to count the number of particles by using a TWIN ZetaView (PMX-230) system (Particle Metrix). Red circles indicate unfavorable fractions after exosome isolation. C. TEM analyses of exosomes from two different types of neuronal cells. Size bar indicates 100 nm.
